Post Info TOPIC: Sequoia Electrathon Racer (2024)


Senior Member

Status: Offline
Posts: 159
Date:
RE: Sequoia Electrathon Racer (2024)
Permalink



A couple of years ago, I assembled a 16S (60V) lithium battery module out of some Chevy Volt cells

To use it in my Sequoia racer, I'm working on a more secure battery box

The plan

SAM_2237 (1).JPG

Transferred to steel

SAM_2239 (1).JPG

Cut out

SAM_2240 (1).JPG

Bending it up (metal origami)

SAM_2244 (1).JPG

Battery box (front)

SAM_2280 (1).JPG

...& the back side

SAM_2281 (1).JPG



Attachments
__________________


Senior Member

Status: Offline
Posts: 159
Date:
Permalink


16S 60V 15AH Lithium battery module (naked)

SAM_2282 (1).JPG

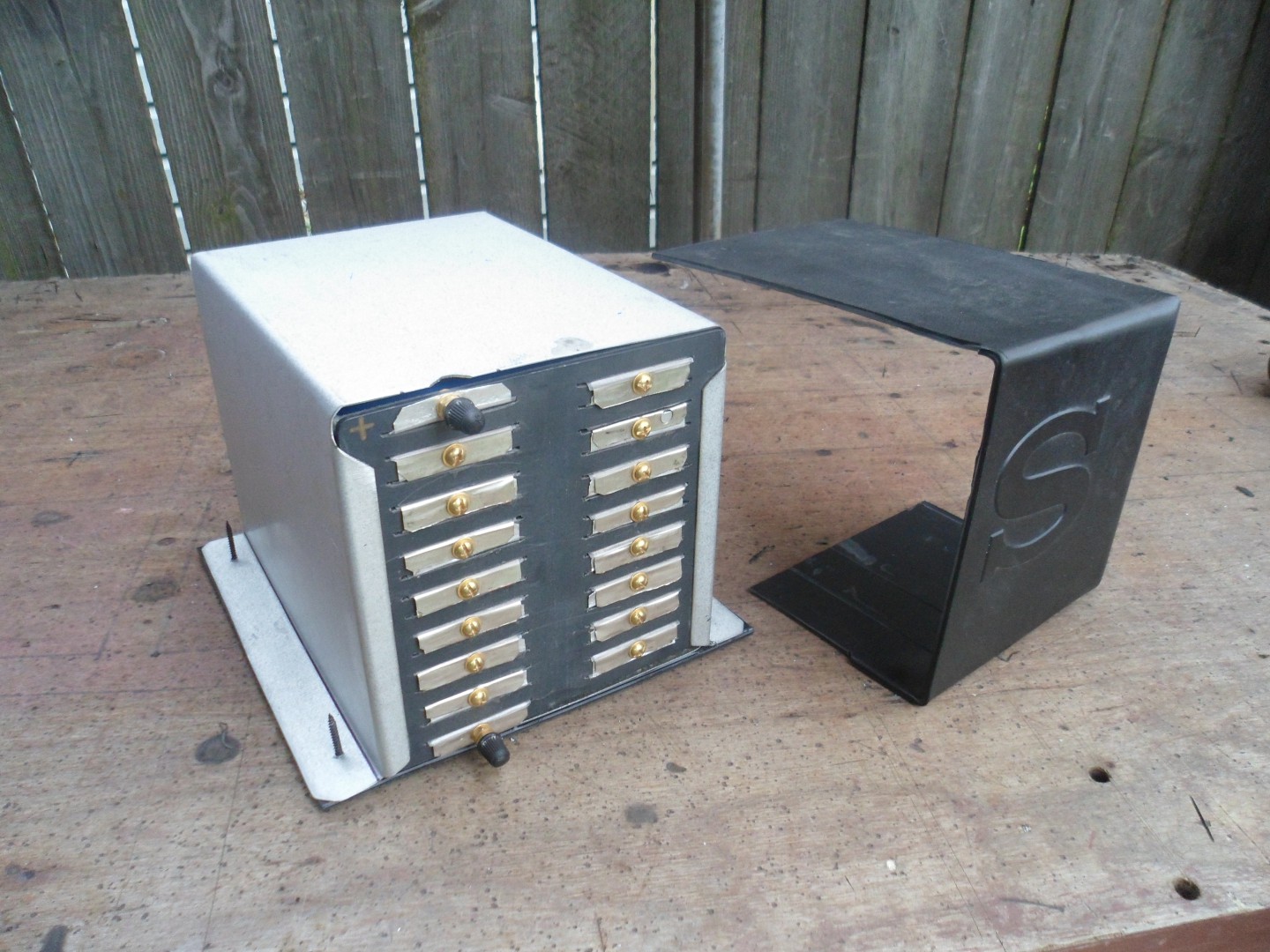

...& mounted in the box

SAM_2287 (1).JPG

* Notice the terminal cover with "S" for Sequoia biggrin



This 16S module has been sitting all winter

...so, I did an individual cell Voltage test

SAM_2298 (1).JPG

** All of the cells voltages seem to be still pretty "close"

...to each other

...& to last falls readings too

SAM_2299 (1).JPG



Attachments
__________________


Senior Member

Status: Offline
Posts: 159
Date:
Permalink


Ordered some XT90 connectors (for connecting the battery pack)
...& some 2-terminal Molex connectors (for connecting the wiring harness to the speed controller)

While waiting, I smoothed, rounded, cleaned & painted some parts smile

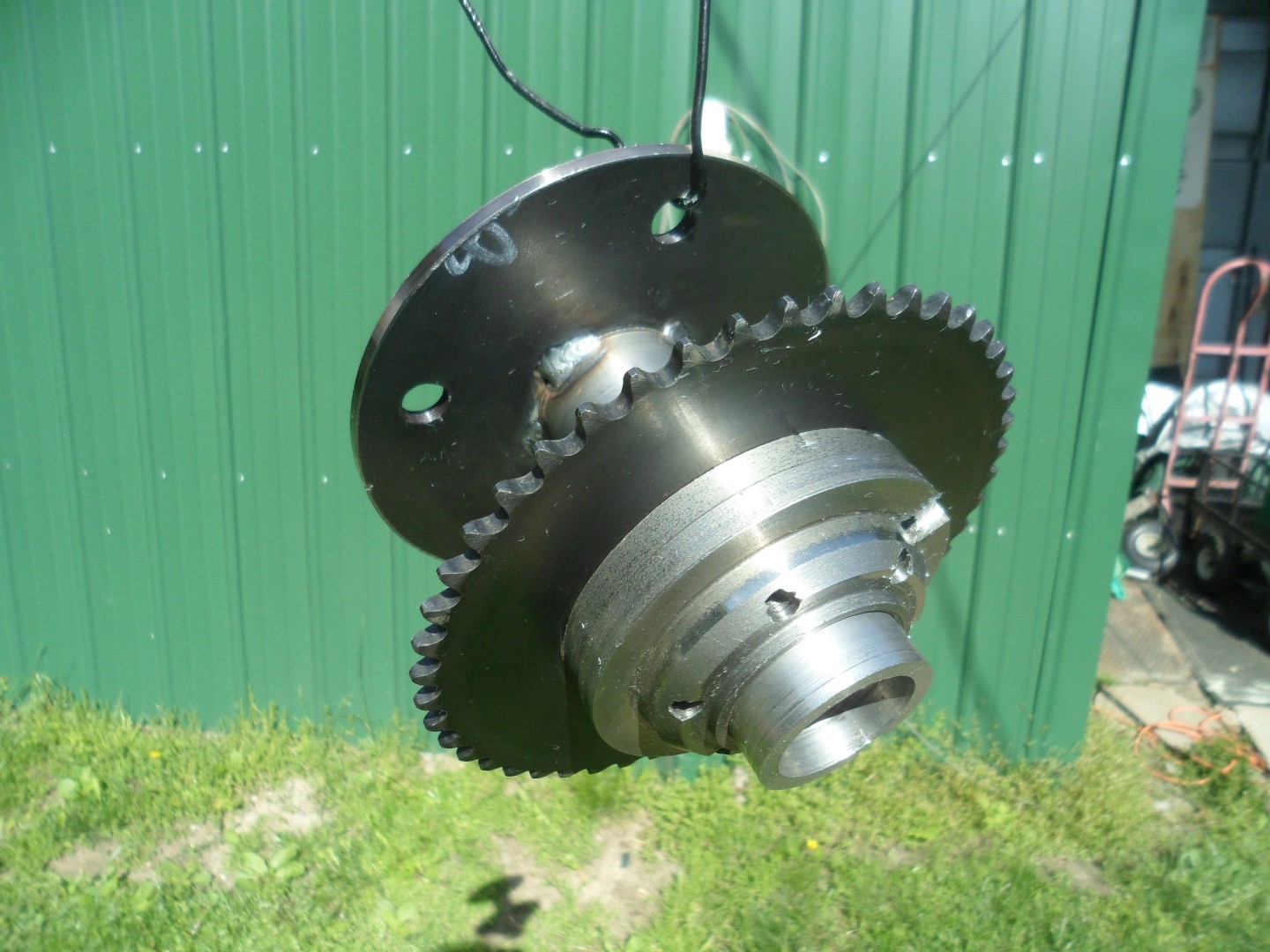

Rear wheel hub (before)

SAM_2292 (1).JPG

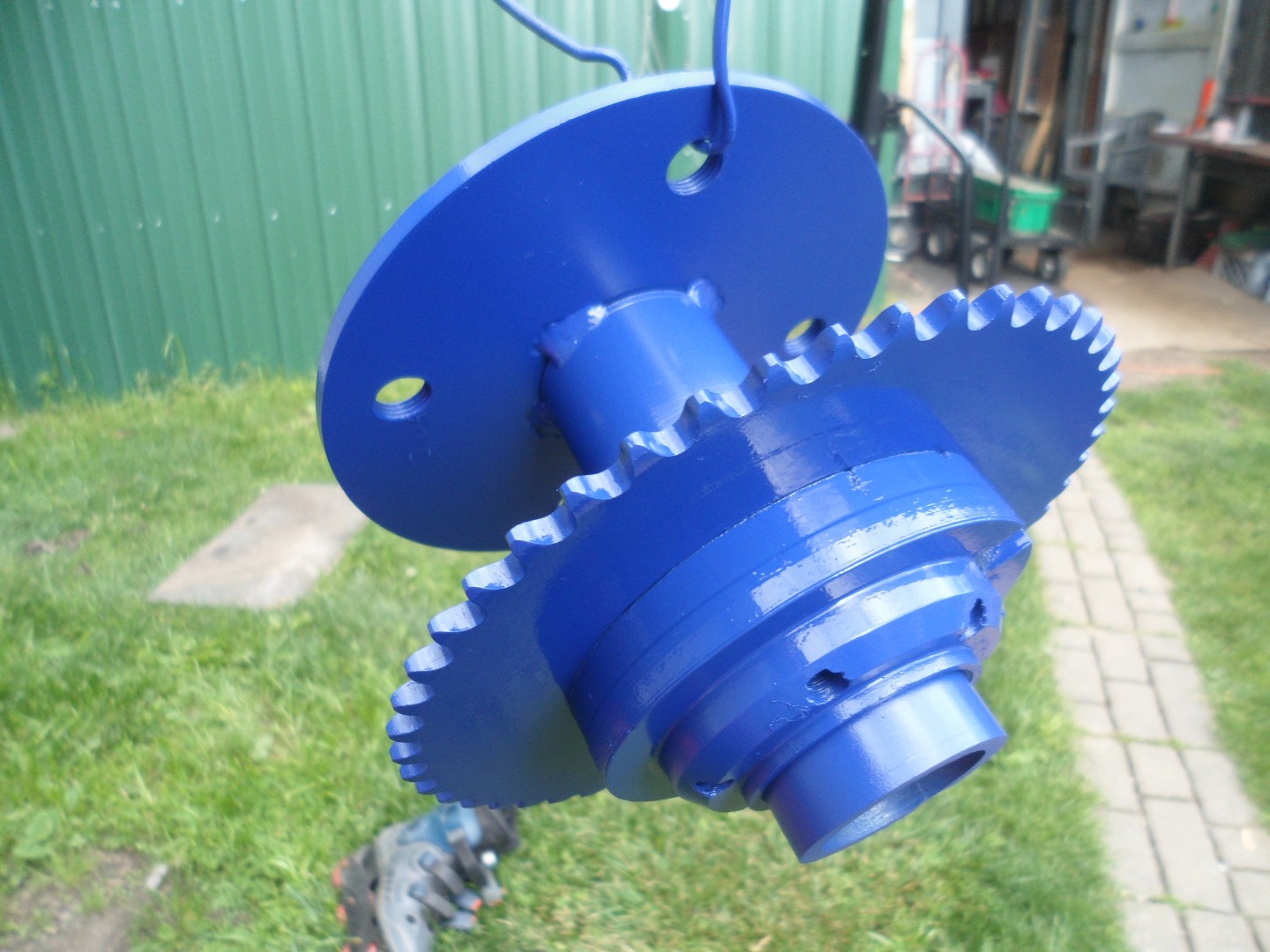

...& after (Rustoleum Satin Blue)

SAM_2294 (1).JPG

Front wheel hubs

SAM_2305 (1).JPG

Swing arm (rear)

SAM_2295 (1).JPG

A-frames (front)

SAM_2308 (1).JPG

Tie Rods

SAM_2310 (1).JPG



...& ends

SAM_2309 (1).JPG



Attachments
__________________


Senior Member

Status: Offline
Posts: 159
Date:
Permalink


Doing some assembly on the wheel hubs

Inner bearing, spacer

SAM_2365 (1).JPG

...& outer bearing

SAM_2367 (1).JPG

Added a washer to "space" the bearing away from the retaining nut

SAM_2370 (1).JPG

Installed a Castle nut

SAM_2371 (1).JPG

Adjusted the nut down to where the hub doesn't have any lateral (or side to side) movement

...but, still rotates "freely

...then, marked & drilled holes for Safety pins

SAM_2381 (1).JPG

Kinda like this

SAM_2386 (1).JPG



Attachments
__________________


Senior Member

Status: Offline
Posts: 159
Date:
Permalink


I've been working on the Throttle Control Assembly

TCA Components
...pedal
...cable connector
...cable mounting bracket
...cable end/adjustor
...cable/housing
...cable end/adjustor
...electronic Hall Effect Thumb Throttle (mounted on a "peg")

SAM_2405 (1).JPG

* Notice the throttle pedal return spring

...which gives 'er a nice firm feel
...& provides for some good-n-snappy pedal "return action"

SAM_2409 (1).JPG

**Also, notice the adjustable throttle pedal stop

...so, the throttle can be easily "floored" without overexerting the thumb throttle

SAM_2408 (1).JPG



Attachments
__________________


Senior Member

Status: Offline
Posts: 159
Date:
Permalink


After lots of "clean up" I went ahead & gave the chassis a coat of Satin Black paint

I first layed it on its side, to coat everything underneath

SAM_2414 (1).JPG

Then, after ~1 hour I set it upright & "made it look purty" biggrin

SAM_2417 (1).JPG

Soon thereafter, a dumb 'ol bird "left a package" no

SAM_2416 (1).JPG



Attachments
__________________


Senior Member

Status: Offline
Posts: 159
Date:
Permalink


While the chassis was drying, I did some pre-assembly on the (rear) swing Arm biggrin

...fender, wheel hub, motor & chain
SAM_2419 (1).JPG

I mounted the motor using (4) 5/16" x 1" Carriage bolts (up from underneath, thru the adjustment slots)
...with washers & Loc-Nuts (on top)

SAM_2420 (1).JPG



Attachments
__________________


Senior Member

Status: Offline
Posts: 159
Date:
Permalink


After a few days of letting the paint dry/cure, I started installing the sub-assemblies onto the chassis

A-frames, bushings, shocks & attachment hardware

SAM_2425 (1).JPG

Swing arm with bushing, shock & attachment hardware

SAM_2428 (1).JPG

Side view

SAM_2424 (1).JPG

Installed the wheels

...& now we have a "roller" biggrin

SAM_2430 (1).JPG

Frontal view

SAM_2431 (1).JPG

A view from above

SAM_2434 (1).JPG



Attachments
__________________


Senior Member

Status: Offline
Posts: 159
Date:
Permalink


Floorboard

I harvested a couple of pieces of stainless steel, off the doors of an old refrigerator

SAM_2063 (1).JPG

...& going to use a piece for the floorboard

SAM_2453 (1).JPG

Kinda like this biggrin

SAM_2470 (1).JPG

* Notice, I trimmed the front up to extend just ahead of the front mount brackets

SAM_2471 (1).JPG

...& curved the rear upwards to help direct fresh/cooling air into the motor/speed controller area/compartment

SAM_2472 (1).JPG



Attachments
__________________


Senior Member

Status: Offline
Posts: 159
Date:
Permalink


Safety (fire) Wall

I'm going to install a metal safety wall in between the motor/speed controller compartment & the driver

The idea is to help protect the driver in the event of a catastrophic motor failure (shrapnel)
...or electrical issues from motor/speed controller &/or connections
...&/or chain failure (blunt force trauma)

SAM_2529 (1).JPG

This panel will be secured in place, at the top, by the seatbelt shoulder strap bolts

SAM_2530 (1).JPG

...& at the bottom, by the swing arm mounting bracket & bolts biggrin



Attachments
__________________


Senior Member

Status: Offline
Posts: 159
Date:
Permalink


I painted the safety wall

SAM_2568 (1).JPG

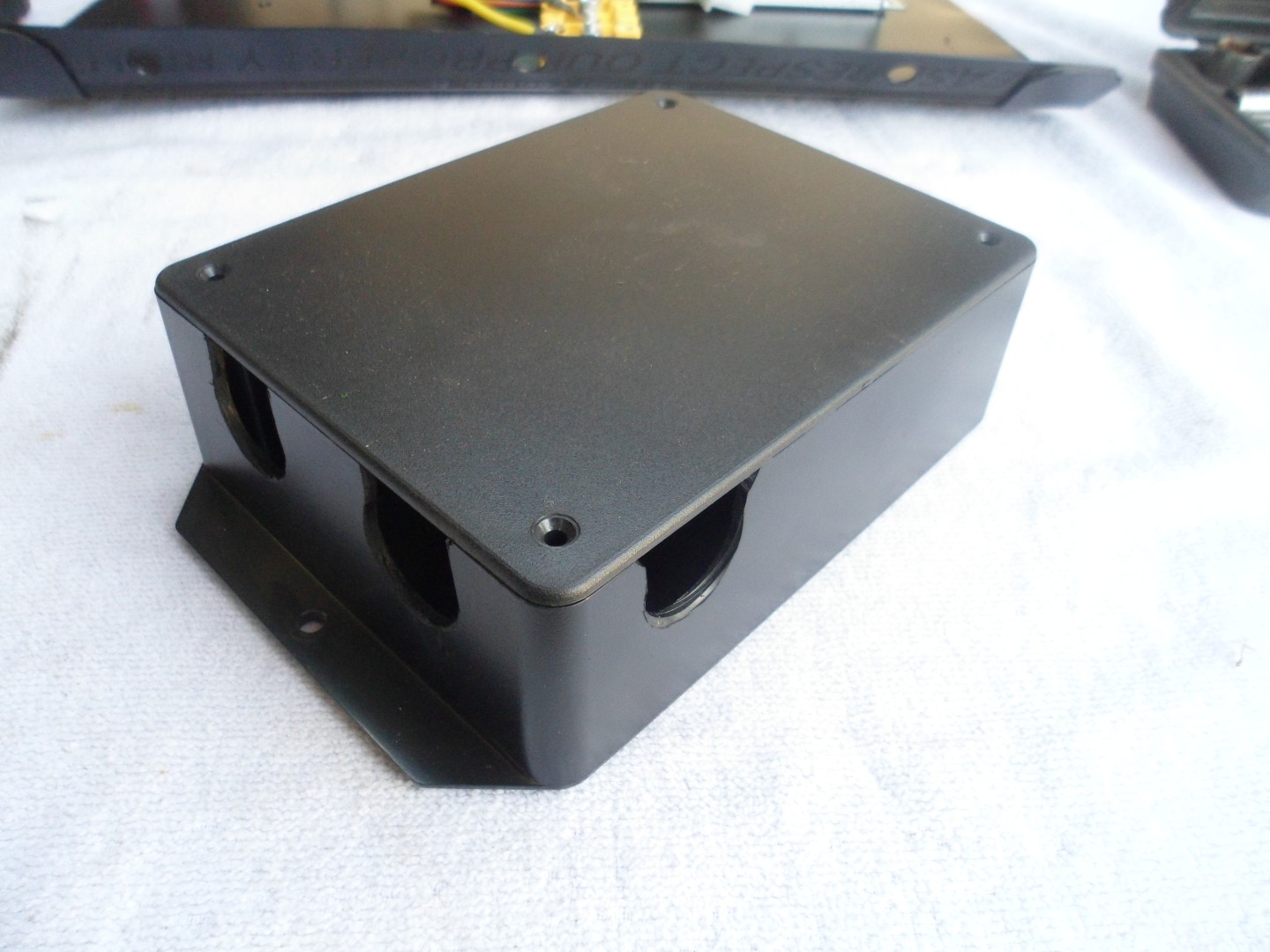

While the paint was drying, I rounded up a box to house & protect the connectors for the speed controller

...& installed a couple of ports for the wires to enter (from SC)

...& exit (going to their individual components)

SAM_2572 (1).JPG

This is how the SC, connection box & motor power wire connection block will be arranged, on the back side of the safety wall

SAM_2573 (1).JPG

Wiring

SAM_2570 (1).JPG

All of the smaller wires/connectors (at the top) are for control & signal circuits (On/Off switch, Reverse switch, Throttle control etc.)

The thicker Red & Black wires (kinda in the middle) are the main power input wires (where ya connect the battery)

The 5-wire connector (I'm holding) is the for the motor's Hall sensors (rotor position signals)

The 3 thick wires (at the bottom) are the motors power wires (sends "power" to the motor)
...& they have their own thermally insulated, connector block (yellow)

So, most of the wires from the SC enter, the box, thru the side port (except the motors Hall sensor & power wires)
...then, the wires will exit thru these bottom ports

...& then, go thru a rubber gromet, to their individual components biggrin

SAM_2578 (1).JPG



Attachments
__________________


Senior Member

Status: Offline
Posts: 159
Date:
Permalink


Let's "dive" right into the wiring biggrin

I have/am going to use some 22/4 wire

SAM_2546 (1).JPG

Which has 4-22g individually insulated Coper stranded wires in a common jacket
SAM_2548 (2).JPG

There are going to be 3 separate 4-wire "bundles going from the SC to the steering wheel

I labeled them 1,2 & 3

#1 is for the On/Off circuit & the Reverse circuit (2-wires per circuit)

#2 is for the 3-speed switch (requires 3-wires)

#3 is for the PZEM-051 power meter (requires 4-wires)

SAM_2579 (1).JPG

Let's start with the On/Off circuit AKA KSI (key switch/ignition) or in Chinese (Electric Lock) confuse
...& the reverse circuit

I put them (On/Off & Reverse) together, mainly because both circuits require 2-wire switches
...& are going to be mounted on the steering wheel

SAM_2583 (1).JPG

Like this (#1)

SAM_2591 (1).JPG

These are the main circuits

* left-Throttle connection

* 3-speed switch connection

* Reverse switch connection

* right-On/Off switch connection

SAM_2598 (1).JPG

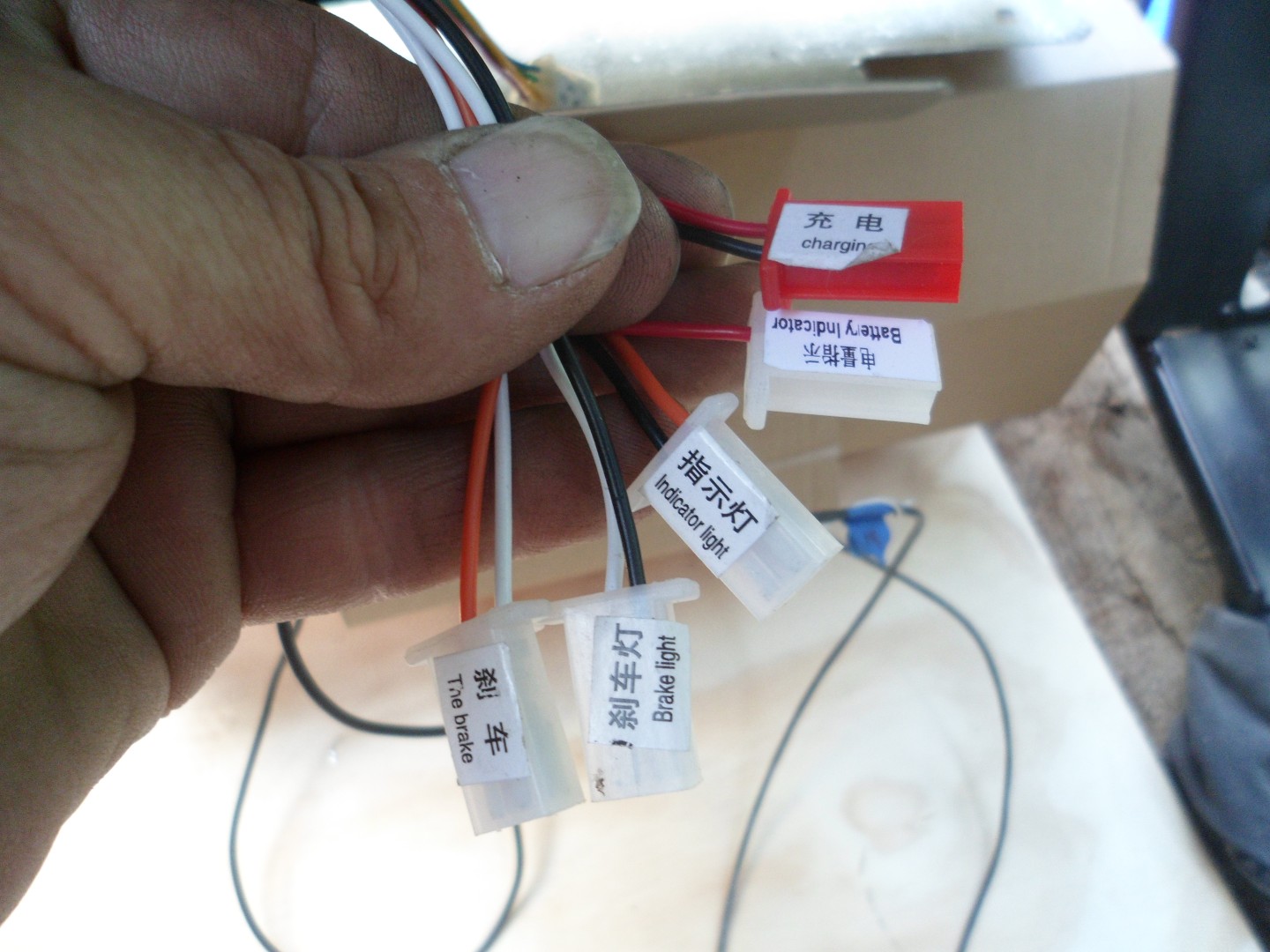

...& these are the accessory circuits

SAM_2599 (1).JPG

"The Brake" connector is for connecting the Brake pedal switch



"Brake light" connector is for connecting the brake light



The "Indicator Light" connector is for connecting a dash light, which should illuminate when the system is switched "on" (to indicate, to the driver, the system is "on")



"Battery Indicator" connector will connect to (& provide power to) the PZEM-051 power meter

...& "is" switched (turns on/off with the main On/Off switch)

...so, it will also, "act" as an Indicator light (to indicate, to the driver, the system is "on")



The "Charging" connector is for easily connecting a battery charging port



Attachments
__________________


Senior Member

Status: Offline
Posts: 159
Date:
Permalink


The speed controller(s) "signal" wires have "male" Molex connectors

...so, we had to get some "female" Molex connectors, to connect all of the individual circuits



Most circuits use (2) wire connectors (On/Off, Reverse, Brake pedal & light etc.)

SAM_2592 (1).JPG

Some (like the 3-speed switch & the Throttle) use 3 wire connectors

SAM_2597 (1).JPG

Once you have some mating connectors, you have to connect the wires to the connector's terminals

The way I do it is to strip ~2" of the outer jacket off

...& then, strip ~1/4" of insulation off of each "inner" wire

SAM_2584 (1).JPG

Then, (because the wires are so small) I (personally) bend the bared wires back over the insulation

SAM_2585 (1).JPG

Then, lay the bared/bent over wire into the terminal (end)

SAM_2586 (1).JPG

* Notice there are (2) "crimping areas"

...the upper portion is to be "crimped" over the bared wire

SAM_2587 (1).JPG

The lower portion is to be "crimped" over a portion of the insulation (to make a stronger junction/connection)

* Looks like the camera is focusing more on the workbench, than the crimped terminal no

...but, hopefully you "get the point"

SAM_2589 (1).JPG

After installing all of the terminal/ends

SAM_2590 (1).JPG

Insert them into their designated positions in the connector

...& then, simply "plug them in" biggrin

SAM_2598 (1).JPG



Attachments
__________________


Senior Member

Status: Offline
Posts: 159
Date:
Permalink


Circuit Breaker

This racer will have a 60VDC system

...powered by a 16S 60V Lithium battery pack

...& motivated by a 60V 2,000W brushless motor



So, to help protect the entire electrical system we are going to use a 150VDC 50A circuit breaker

SAM_2607 (1).JPG

Also, to help protect the capacitators in the SC from a huge "inrush" of energy, before the system is first energized, we have a pre-charge circuit






Attachments
__________________


Senior Member

Status: Offline
Posts: 159
Date:
Permalink


The pre-charge circuit is just a 10W 1Kj resistor, with a momentary switch, that are connected to each side/terminals of the circuit breaker

SAM_2609 (1).JPG

It allows the user to pre-charge (slowly fill up) the capacitators in the SC, before the system is first energized

Tested the CB & pre-charge circuit with a little 12V SLA



With CB in the "Off" position & before energizing the pre-charge feature, there is NO voltage present

SAM_2621 (1).JPG

Then, when the pre-charge button is pushed (& held for a few seconds) the voltage level slowly rises

...until there is full pack voltage present

...then, the CB can be "safely" switched "on"

SAM_2623 (1).JPG

Installed/mounted "it" in the racer, right next to the driver biggrin

SAM_2628 (1).JPG



K



Attachments
__________________


Senior Member

Status: Offline
Posts: 159
Date:
Permalink


Next up, installing the 3-wheel brake system

SAM_2648 (1).JPG

First, I got the master cylinder, installed

SAM_2650 (1).JPG

Then, I installed the front calipers
* First, I got a "feel" for how easy the kart rolled, by hand
...then, after installing each caliper, I gave 'er a "test roll" to see if I noticed any additional drag
...& I'm happy to report, I didn't notice any additional drag

SAM_2656 (1).JPG
 Rear caliper installed, as well

SAM_2666 (1).JPG

I'd say a couple of systems checks
...& she's about "ready to rock" biggrin

SAM_2667 (1).JPG



-- Edited by Functional Artist on Wednesday 12th of June 2024 12:01:32 PM

Attachments
__________________


Senior Member

Status: Offline
Posts: 159
Date:
Permalink


Intro video biggrin



__________________


Senior Member

Status: Offline
Posts: 159
Date:
Permalink


I charged up the battery pack & took her for a first test ride

...but, it didn't turn out as planned no



__________________


Senior Member

Status: Offline
Posts: 159
Date:
Permalink


I charged up the battery pack & took her for a first test ride

...but, it didn't turn out as planned no

...& here are some thoughts on/about the issues biggrin



__________________


Senior Member

Status: Offline
Posts: 159
Date:
Permalink


So, it looks like maybe a few different things "ganged up" on this motor/controller

Weight?
GR?
Spring sag/rolling resistance?

But?


For comparison:
My Atom kart (mini-Aerial Atom) 2018

...is a heavy beast (IMO)
...& even has an extra wheel

Build thread (if interested)
https://www.diygokarts.com/community/threads/building-a-go-kart-size-aerial-atom.40167/

This kart has the same 60V 2,000W motor & controller (bought at the same time)
...is running at about the same GR (Atom has 10T drive & 54T driven = 5.4:1) & (Sequoia has 10T drive & 50T driven = 5:1)
...& both were tested with the same battery pack (custom made 60V 16S Lithium)

This is the type of performance, I "was" expecting  biggrin



-- Edited by Functional Artist on Monday 17th of June 2024 09:22:30 PM

__________________


Senior Member

Status: Offline
Posts: 159
Date:
Permalink


So, for reflection & comparison, I got out a couple of my 3-wheeled karts over the weekend (Mini-Slingshot, Polaris & Sequoia)
SAM_2806 (1).JPG

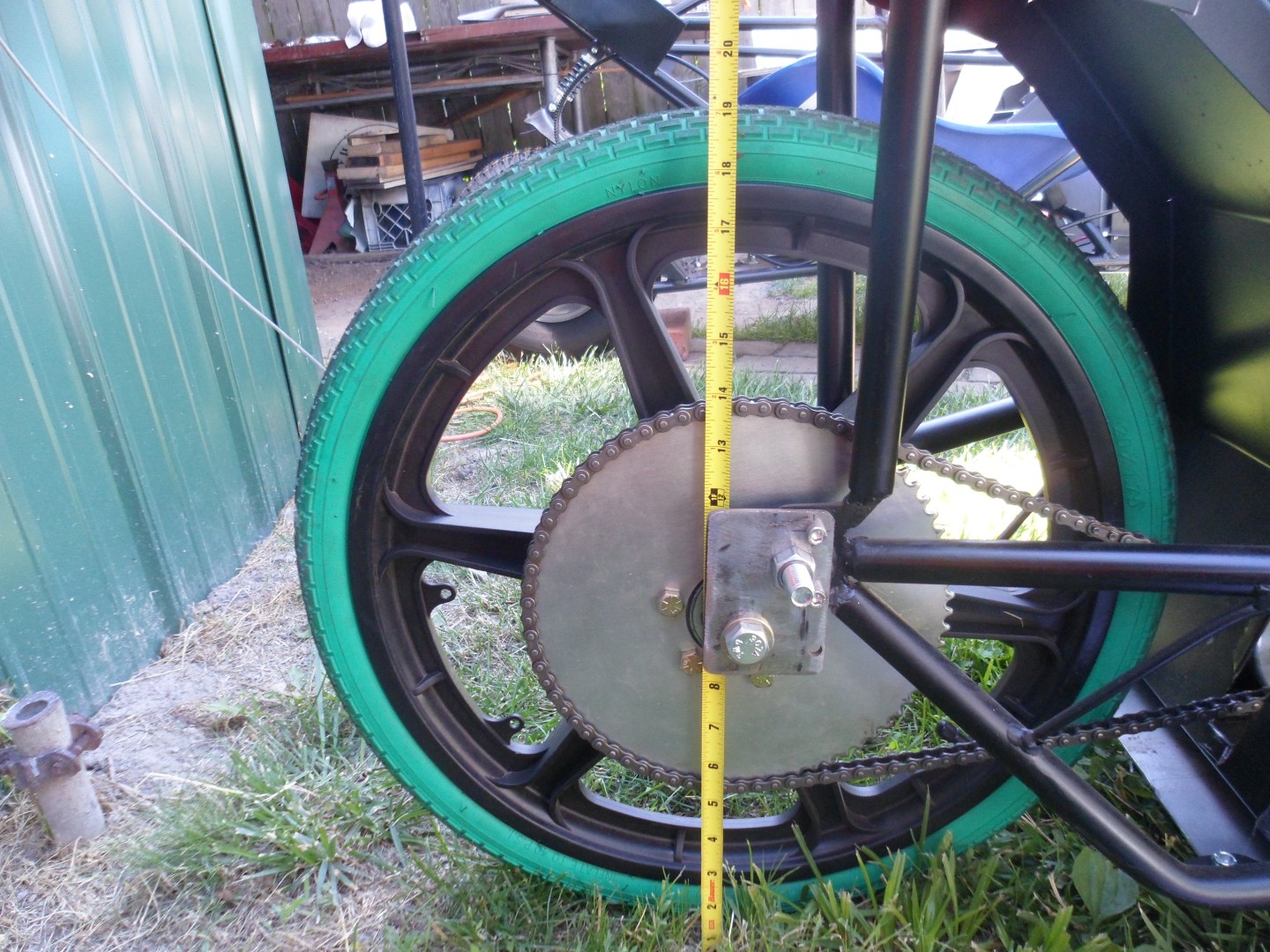

The Mini-Slingshot has (60T ~7" sprocket (6:1 GR) on a ~13" wheel)

* Notice that the driven sprocket is ~50% of the size of the wheel?
SAM_2809 (1).JPG

Polaris has (72 T ~9" sprocket (7.2:1 GR) on a ~20" wheel)

* Notice the driven sprocket is also ~50% of the size of the wheel?

Sequoia has (48T ~5" sprocket (4.8:1 GR) on a ~16" wheel)

* Notice the driven sprocket is ~30% of the size of the wheel? no

So, yea! I'm thinking that I got a bit too aggressive with the ~5:1 GR (50T driven sprocket...after double checking it is actually a 48T)

To "back 'er down a bit" I found (& ordered) a 60T sprocket from BMI karts for ~$10.00
...which will give us a 6:1 GR

Sprocket #35 60T (No Bolt Holes) | 774154 | BMI Karts And Parts

Sprocket #35 60T (No Bolt Holes)
Product Specs:
Chain Pitch: #35
Teeth: 60
Bore: 1-1/2"
Can be used on a multitude of projects
Sprockets have surface rust from storage

Also, I have to deal with the front suspension "sag" issue
...which leads to the front wheels "toeing outwards"
...which then, dramatically increases the rolling resistance

Here I am pre-weighting the front of the kart with my foot, to demonstrate how the wheels "splay" outwards

SAM_2827 (1).JPG



Attachments
__________________


Senior Member

Status: Offline
Posts: 159
Date:
Permalink


Also, wanted to mention that when the front wheels of a vehicle change direction, when/as the suspension "travels", is called or referred to as Bump Steer
...& it usually "comes & goes"

But, this situation is worse
...because the bump steering doesn't "come & go"

When the front suspension on this racer "sags"
...& the front wheels start "toeing outwards"
...this "toeing outwards" situation gets continually worse
...because as the kart travels, the front wheels "continue" to creep "outwards" more & more & more
...& as they do this, they suck the suspension down even lower & lower & lower
...making the problem continually wors(er) & wors(er) & wors(er) no

IMO the suspension in a performance or race car should be kinda "stiff"
...& shouldn't really "travel" very much

It's mainly to help absorb road irregularities, which should help keep the wheels "planted" on the road & not bouncing around
(like in a Corvette, where the ride isn't super smooth but, the wheels "hug" the road)

So, Ima thinking we need some stiffer shocks biggrin



__________________


Newbie

Status: Offline
Posts: 4
Date:
Permalink


There are always a lot of different ways to approach anything...

Very stiff springs could reduce the effects of bump steer.

Working on the steering/suspension geometry could reduce the causes of the bump steer in the first place.  If you get rid of the bump steer, then you could still test and compare soft vs. stiff springs, but directly w/o other complications.



Computer-based tools make it easier to figure out steering/suspension geometry, but it is possible to do some analysis with pencil and graph paper, or cardboard and thumbtacks, and 2-D front/top/side views.

Most of the info online discussing bump steer assumes double A-arm suspension.

You can look at your single A-arm (swing arm) suspension as a version of double A-arms where the upper and lower arms share the same inboard pivot.

If the inboard end of the tie rod also lines up on the suspension arm pivot axis, then bump steer should go away (at least, when driving straight ahead).

The location of the outer end of the tie rod (and the fore-aft location of the inboard end of the tie rod, and the steering arm) will determine bump steer when turning (along with steering rate, Ackermann, etc.)



Compared to Sequoia, the steering rack on your Mini-Slingshot puts the inboard ends of the tierods much closer to the suspension pivots.  In theory the bump steer should be better on it?

I am not saying Sequoia necessarily needs a steering rack (the chain-based rack is cool, however).  You could retrofit something like a drag link plus center link on idler arms.  Or make your suspension arms pivot along the centerline of the car...



-- Edited by 0apfu on Thursday 4th of July 2024 07:04:41 PM

__________________


Senior Member

Status: Offline
Posts: 159
Date:
Permalink


Hey Oapfu,

Yup, I agree
...& thanks for the input
...& helping to expand the conversation ;)

I'm going to just "bypass" the front suspension issue (for now)

...by installing a couple of "props" in place of the coil-over shocks

SAM_3373 (1).JPG

Also, switching to a 48VDC system

A MY-1020 48V 1,000W brushed motor

SAM_3212 (1).JPG

...with a WYYS 48V 1,000W speed controller

SAM_3213 (1).JPG

...& a 14S 52V



20AH Lithium batt pack

SAM_3127 (1).JPG



Attachments
__________________


Senior Member

Status: Offline
Posts: 159
Date:
Permalink


I removed the 60V motor, controller & batt pack

* Notice how just by unhooking the rear shock provides ample access to the motor, controller & connection box

SAM_3359 (1).JPG

Then, I did some exploring

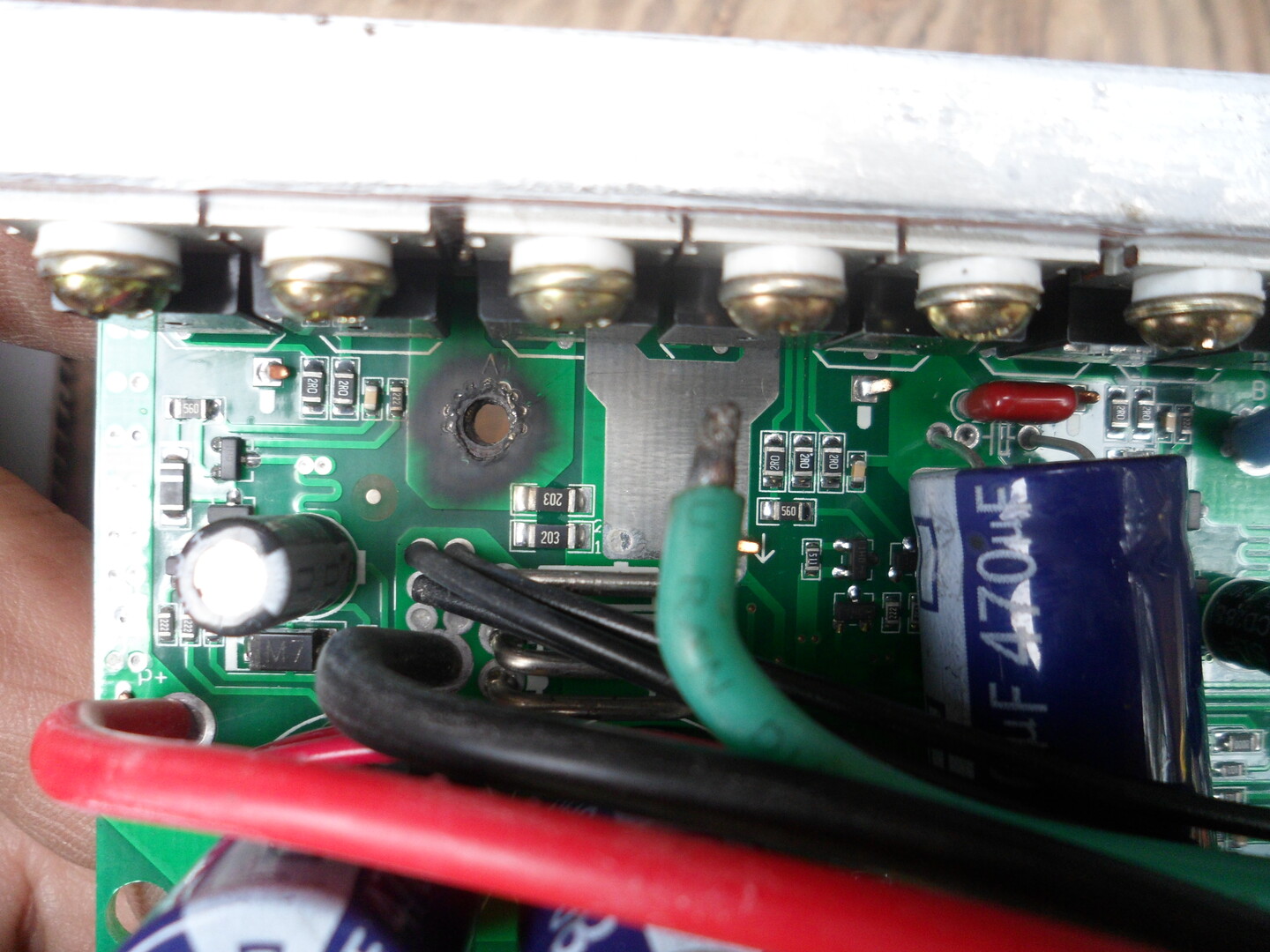

...& it looks like the green "power" wire & connection "pad" has some heat damage

SAM_3201 (1).JPG

Wow! the green "power" wire burned right out of its socket

SAM_3202 (1).JPG

The underside shows that the "pad" for the yellow "power" wire has some heat damage too

SAM_3203 (1).JPG



Attachments
__________________


Senior Member

Status: Offline
Posts: 159
Date:
Permalink


Most of the control/signal wiring, switches & connections were compatible with both the 60VDC & 48VDC systems

...so, installing/switching to the 48V 1,000W motor & speed controller was pretty simple



* Notice how the connection box protects the connections

...& helps maintain a nice-n-clean installation

SAM_3372 (1).JPG

...but, still allows ample access to...everything

SAM_3370 (1).JPG

...& having all of the circuit/connectors "labeled" also made the "switch" super easy

SAM_3360 (1).JPG

All "buttoned up" biggrin

SAM_3377 (1).JPG



Attachments
__________________


Senior Member

Status: Offline
Posts: 159
Date:
Permalink


I made a battery box (basically a (5) sided cover) to protect the battery pack from external damage
...& (more importantly) to protect the driver from any potential battery issues
...& also, a device/method for securely mounting the batt pack to the chassis

* It's NOT a sealed container
...but, more like a "fire wall" between the driver & batt pack
...which will give the driver more time to exit the vehicle, in the event of an emergency



The plan (on paper)

SAM_3386 (1).JPG

The plan (layed out on a piece of sheet metal)

SAM_3379 (1).JPG

Cut out, rounded & smoothed

SAM_3382 (1).JPG

Bent up

SAM_3385 (1).JPG

Test fit over the battery pack

SAM_3387 (1).JPG





Attachments
__________________


Senior Member

Status: Offline
Posts: 159
Date:
Permalink


Here are the (2) battery packs
...60V (16S) lithium battery pack (left)
...& 52V (14S) lithium battery pack (right)
SAM_3392 (1).JPG
Before installing the battery pack, I had to install a shunt (data collector for the PZEM-051 power meter)
...because for some unknown reason (seemed like a good idea at the time) I installed the shunt, on/inside of the cover on the 60V battery pack
SAM_3393 (1).JPG
This piece of vinyl tube will "serve" as a protector/insulator for the shunt
SAM_3396 (1).JPG
I'm thinking that it should be pretty well "safe" if mounted, under the seat
SAM_3401 (1).JPG
I have to "cut out" a section of the Negative "cable"

...to be able to "fit in" the shunt
SAM_3402 (1).JPG
Like this

SAM_3403 (1).JPG

Here is the shunt

...all "wired up"
...& then, slid inside of the protective "sleeve"
SAM_3406 (1).JPG
Here's the battery pack/box & shunt
...mounted on the racer biggrin
SAM_3407 (1).JPG




Attachments
__________________


Senior Member

Status: Offline
Posts: 159
Date:
Permalink


I did up a video kinda summarizing most of the modifications, that I've made recently
...& even did a test ride/run

* Spoiler alert...I didn't have ta push 'er home...this time



__________________


Senior Member

Status: Offline
Posts: 159
Date:
Permalink


I took the racer out for another test run & speed test

Also, talk about/compare a freewheeling rear wheel vs. wheel with direct drive biggrin



__________________


Senior Member

Status: Offline
Posts: 159
Date:
Permalink


The racer has been doing so well, I figured it was time to take 'er out for an endurance run
...start off with a 15 min run
&
Then, "if" everything seems "good", maybe keep going for a whole 1/2 hour
...but, nope, today was NOT the day :mad2:

* This is why test running a racer is so important, BEFORE race day biggrin



__________________


Senior Member

Status: Offline
Posts: 159
Date:
Permalink


I've been looking for a test track site, to be able to test run my racers

Here are the requirements, as per the EA Rulebook

COURSE REQUIREMENTS
Events are typically held on parking lots, paved race tracks or velodromes where access onto the track can be safely controlled. EA strongly encourages events to be held on actual race courses when possible. This is to alleviate hazards inherent in street courses. Where road or parking lot courses cannot be avoided, extra care should be taken to identify possible hazards and have them barricaded or flagged to prevent collisions. Such hazards shall be identified and strategies for avoidance discussed at the drivers meeting Courses must be closed to all other vehicular traffic. Adequate precautions must be taken to prevent access onto the track. This may include, but not be limited to, signs, barricades, banner tape, and traffic cones.

Courses should be free of obstructions such as chuck holes, speed bumps or protrusions that would create a hazard to the competitors. The entire course surface should be the same material and texture. Dips or bumps which may damage the vehicles must be corrected or sanction will not be possible. Barricades must be provided to define the course and may include traffic cones, saw horses and police tape and/or hay bales, etc. Courses should be clearly marked to identify all corners, boundaries, start/finish and any obstacle that could pose a safety problem. There must be a positive physical barrier between spectators and the course. The barriers surrounding the course must be sufficient to stop Electrathon vehicles. Street curbs are not an effective barrier. Hay bales, tire walls, or suitable barriers must be provided to separate the course from spectators. Spectators must not be allowed near the course. Specified spectator areas should be designated with signs, barriers, or at minimum marking tape. There must be enough personnel/security provided for crowd control. Road Course layouts should be designed to offer a variety of turns and straights unique to the location. Courses from 1/4 to 2 mile lengths are used. Courses should alternate from clockwise to counterclockwise from event to event, to reduce tire wear, vehicle stress and offer variety. However some race tracks are specifically designed for vehicles to travel only in one direction. Do not run in a reverse direction if it compromises safety in any way.
Courses should be of adequate width and length to safely accommodate all competitors and allow safe opportunities to pass and maneuver. If a course cannot handle the number of vehicles present then separate heats should be run with a safe number of vehicles in each heat.

LENGTH MINIMUM COURSE LENGTH FOR A SANCTIONED EVENT:
Flat Course: 1/4 Mile (1320 feet, 402.34 m) Banked Course: 1/4 Km (820.21 feet, 250 m) Courses should be long enough to permit vehicles to attain their top speed at some point on the course. A 500-700 foot straight is desirable. Course length must be measured with a measuring wheel. On an oval track the distance is measured as the minimum distance a vehicle's inside tire could travel. On a track with reverse turns, the distances are measured with tangents from inside turn to inside turn.

The distance covered by a vehicle in one hour may be determined by an alternative method if that method can be shown to be more accurate than the current method, and has prior approval from the board of directors. An alternative method may be used to determine an official record of distance/time, but may only be used to determine the finishing order of a race if every competitor uses the same method.

WIDTH RECOMMENDED MINIMUM COURSE WIDTH: 25 feet

Course width must be free of obstructions such as cones, barriers and channels.
Surface must be same across entire width.
There may be no obstacles in the entire course width which would limit the free movement of any vehicle from side to side.

RADIUS MINIMUM CORNER CENTERLINE RADIUS : 25 feet

So, basically we need a good sized, close-able course, that's paved
...& I have some potential future ideas, like in some of our local college university parking lots &/or large Church parking lots
...but, probably gotta "drum up" some interest/support in the program, first

So, check this out:
The old Champion Spark Plug site is only ~1 mile from my house
...it was the main factory & world headquarters for years
...but, it's all gone (they are probably Made in China now)
SAM_3509 (1).JPG
It's mostly just a big 'ol weedy fenced in parking lot now, surrounded with No Trespassing signs
SAM_3508 (1).JPG
But, I found a couple of over-flow employee parking lots
...across the street from the main factory site
...that are not fenced in
...or have any signage whatsoever
SAM_3512 (1).JPG

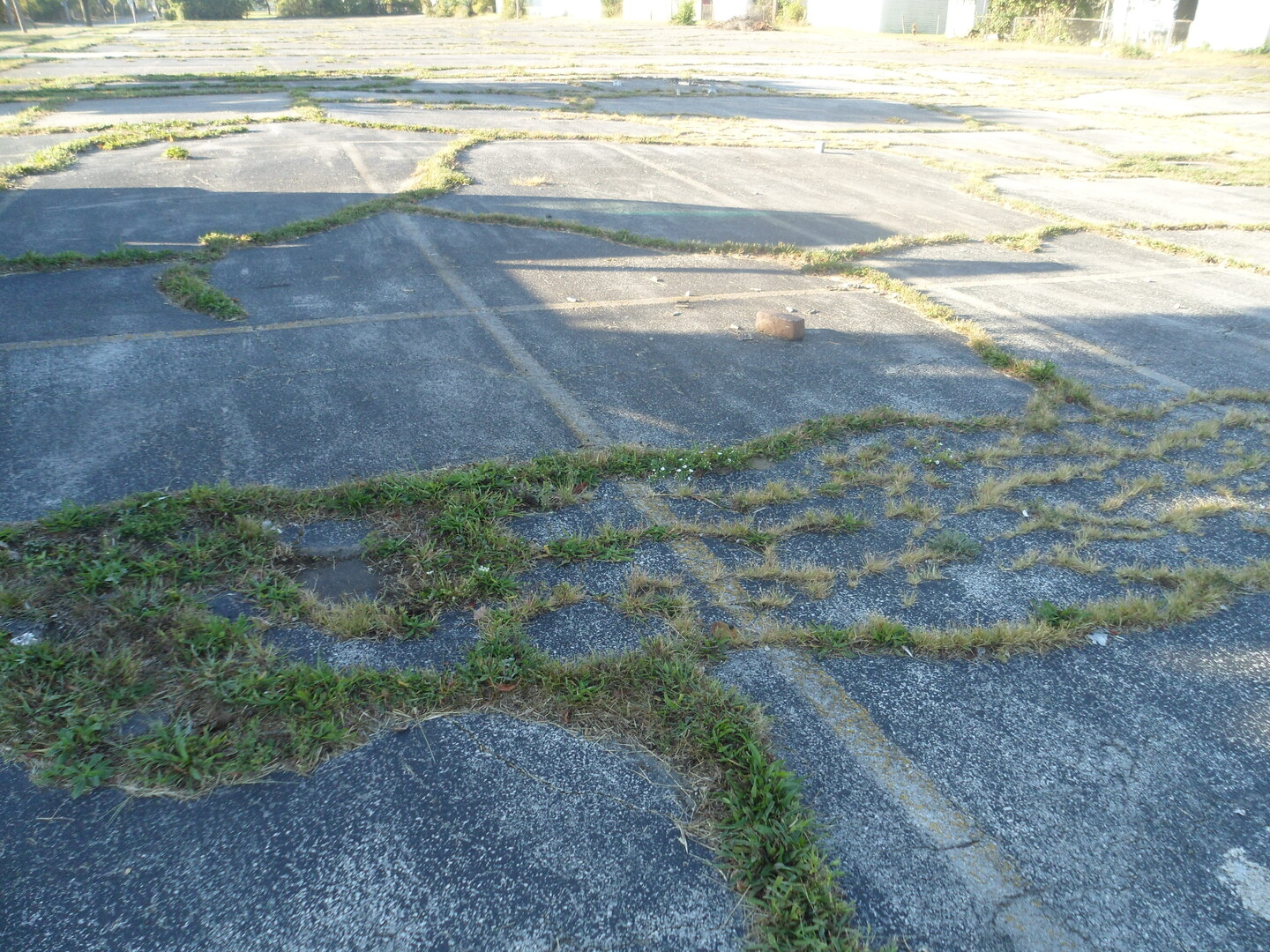

So, I'm gonna do a little bit of clean up like
...broken glass, rocks & bricks & garbage

...& also, remove some of the "natural speed bumps" grass/weeds growing thru the cracks
SAM_3513 (1).JPG
Then, "run" Sequoia around a bit
...like this (my daughter Sierra helped & got in on the fun too) biggrin



-- Edited by Functional Artist on Monday 23rd of September 2024 01:54:37 PM

Attachments
__________________


Senior Member

Status: Offline
Posts: 159
Date:
Permalink


Still doing track clean up
...& also, tried another test run at the Champion track



__________________


Senior Member

Status: Offline
Posts: 159
Date:
Permalink


Note to self: Always make sure the lug nuts are tight biggrin

Then, while giving everything a quick look over I also, found another issue no

...but, it turned out to be a pretty easy fix



__________________


Senior Member

Status: Offline
Posts: 159
Date:
Permalink


After repairs, I took this racer out for another test run biggrin



__________________


Senior Member

Status: Offline
Posts: 159
Date:
Permalink


I found another issue confuse

...which happens quite often when designing & fabricating things



The "good thing" about these "issues" is that they are great for expanding on topics, thru "real world" learning experiences biggrin

...usually referred to as R&D



So, I did an end of season evaluation video (its getting kinda cold to test drive around here)

...to help explain the "new" issue (the rear axle seems to be bending)

&

Also, have some questions about the "effects" of "back spinning" a motor

...like on the added (drag) of from having to "spin" the motor (& chain) like when coasting

...&/or any potential "value" of having a "freewheeling" rear wheel

* This forum is to discuss things like this

...so, why is no one discussing...anything...on here...but me?



__________________
«First  <  1 2 | Page of 2  sorted by

Quick Reply

Please log in to post quick replies.
